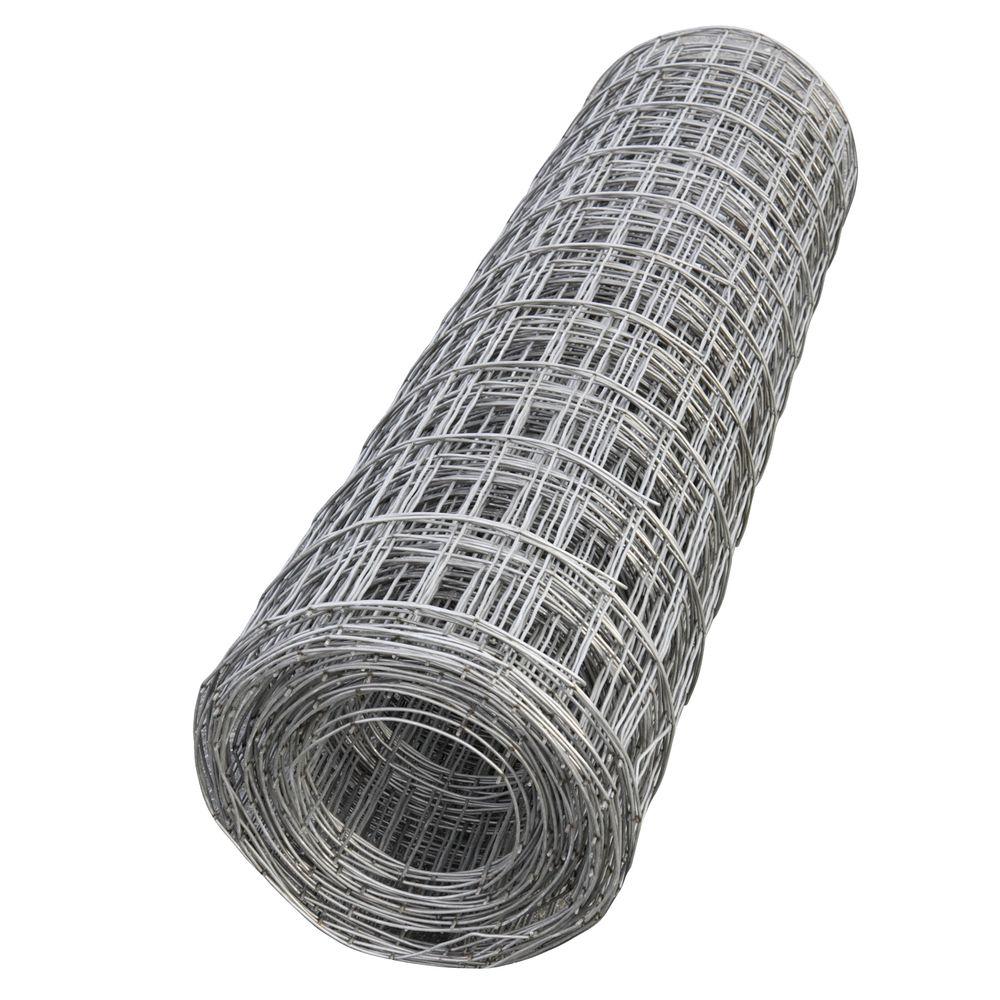

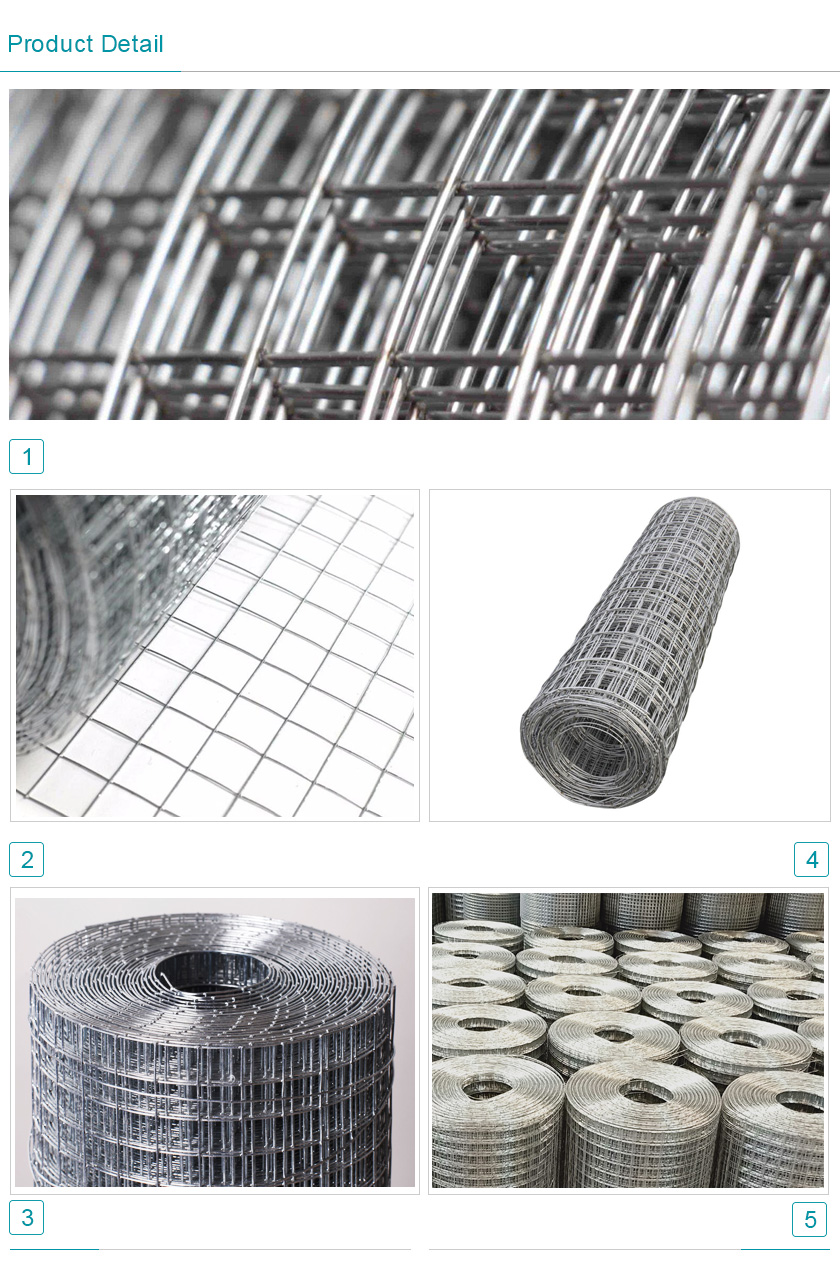

Electric Galvanized Welded Wire Mesh
Wire Gauge:0.4-4mm
Aperture: 1/4*1/4-5*5
Customise acceptable
Free sample
Product description: Welded Wire Mesh with excellent corrosion resistance and oxidation resistance extensively used as fencing, decoration and machinery protection material in construction, sports field, agriculture, min
1.Material:Low carbon steel wire;galvanized wire
2.Feature: Corrosion resistance, aging resistance, sunshine resistance and weather resistance.
3.Application: Welded Wire Mesh with excellent corrosion resistance and oxidation resistance extensively used as fencing, decoration and machinery protection material in construction, sports field, agriculture, mine, transport, lawn and various industrial fields.
2.Feature: Corrosion resistance, aging resistance, sunshine resistance and weather resistance.
3.Application: Welded Wire Mesh with excellent corrosion resistance and oxidation resistance extensively used as fencing, decoration and machinery protection material in construction, sports field, agriculture, mine, transport, lawn and various industrial fields.
| Specification List of Welded Wire Mesh in Roll | ||
| Opening | Wire diameter | |
| Inch | mm | BWG |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22, 23, 24 |
| 3/8” x 3/8” | 9.5mm x 9.5mm | 19, 20, 21, 22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16, 17, 18, 19, 20, 21, 22, 23 |
| 5/8" x 5/8" | 16mm x 16mm | 18, 19, 20, 21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16, 17, 18, 19, 20, 21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16, 17, 18, 19, 20, 21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14, 15, 16, 17, 18, 19 |
| 1" x 2" | 25.4mm x 50.8mm | 14, 15, 16 |
| 2" x 2" | 50.8mm x 50.8mm | 12, 13, 14, 15, 16 |
| Technical Note: | ||
| 1.Standard roll length: 30m; width: 0.5m to 1.8m | ||
| 2.Special sizes available at request | ||
| 3.Packing: in waterproof paper in rolls. Custom packing available at request | ||
