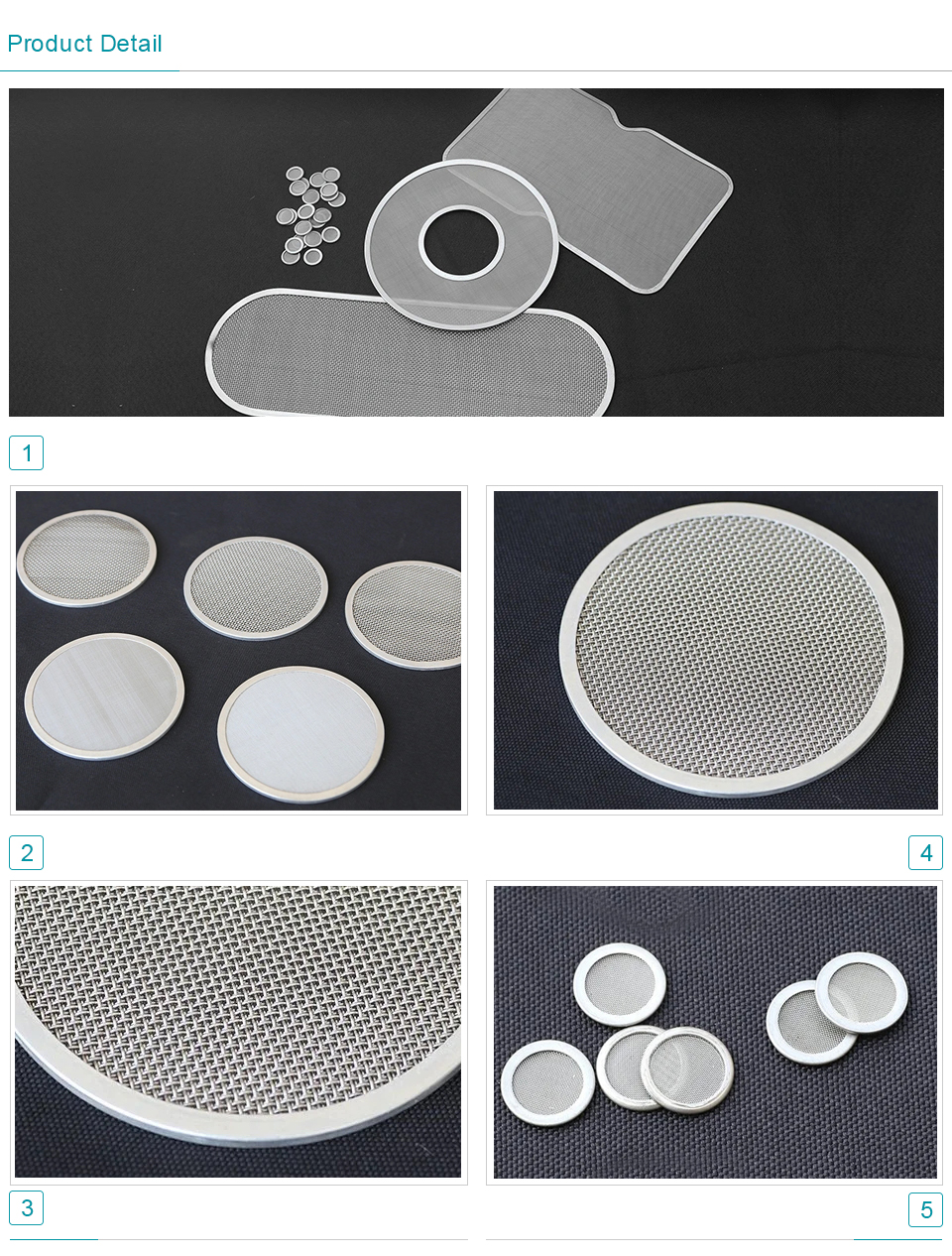

Stainless Steel Wire Mesh Filter Discs
Material: stainless steel wire mesh 304 series, 316 series
Also use phosphor bronze wire mesh, copper wire mesh, brass wire mesh or according to customer's specific requirements.
Shapes:round, rectangle elliptical, other shapes.
Performance:high strain ability, excellent filtration capacity ,precise fitting filter elements , optimum cost-performance ratio, corrosion resistance, thermal resistance
Application: Used in absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks
Multilayer extruder screen with frame is a combination of different density mesh, forming a sturdy structure that increases its holding capacity.
With superior filtration accuracy, multilayer extruder screens play an important role in purification of thinner molten materials such as oil, plastic fines, fibers. Or you can customize extruder screens for various kinds of filtering materials.
| Material | black wire cloth, stainless steel woven mesh, mat mesh, Monel alloy mesh, Hastelloy wire mesh, sintered mesh, black wire, stainless steel wire, copper wire, phosphor bronze wire, brass wire, galvanized steel wire, aluminum wire, etc. |
| Filtration accuracy | 0.1-300μm |
| Wire Diameter | 0.01-6.00 mm |
| Disc Diameter | 5 mm-600 mm (customized size: 8 mm-3800 mm). |
| Filter Discs Shape | round (diameter 44-600 mm), ring (inner diameter 18-250 mm, outer diameter 50-350 mm), rectangular (length 60 mm-400 mm, width 50 mm-100 mm), crescent Shape, semicircular, square, elliptic, abnormal shape, etc. Various shapes and sizes can be processed and customized |
| Number Of Layers | single layer, double layer, multi-layer |
| Processing Technology | double-layer or triple-layer spot welding, generally 4-10 solder joints or customized according to customers’ requirements |
| Weaving Type | plain weave, twill weave, Dutch weave, plain Dutch, twill Dutch etc |
| Edge Treatment | spot welding, edge wrapping or no edge sealing |
| Edge Material | stainless steel, copper, aluminum, rubber, etc |
